Hunter Flow Meter Wiring: Low-Voltage Signal Shielding Ring Connections for Exterior Irrigation Timers
Quick Answer: Hunter flow meter wiring for exterior irrigation timers needs a shielded cable and a shield ring connection at the timer ground terminal. Bond the shield at the timer end only. The flow meter sends a low voltage pulse signal, so high noise from pump cables causes false flow counts.
Hunter flow meters used in irrigation systems send pulse signals to timers like the Hunter X2, Pro-C, and HCC. The signal is low voltage. Most models operate between 5 VDC and 24 VDC. The pulse frequency increases with flow. A timer reads the frequency and converts it to flow rate in litres per minute or gallons per minute.
Because the signal voltage is low, wiring errors create problems that do not always show up during bench testing. We have seen this on customer sites many times. A pump starts, a solenoid valve closes, and the timer shows a flow spike even though the flow did not change.
Low-Voltage Signal Basics for Hunter Flow Meters
The standard Hunter flow meter uses a two wire pulse output. Red connects to the flow sensor input terminal on the timer. Black connects to the common terminal. Some models include a third shield wire or a metal ring around the cable entry. The ring is not a signal conductor. It is a bonding point for the cable shield.
For wiring runs up to 30 m, a two wire cable may work if the area is electrically quiet. For runs up to 150 m, use a shielded twisted pair cable with an 18 AWG or 20 AWG conductor. The shield must be continuous from the flow meter area to the timer cabinet.
Do not use solid core building wire. Do not use sprinkler valve wire for a flow meter if the run passes near pump motors. Solid core wire picks up electrical noise and causes false pulse counts.
Shielding Ring Connections in the Field
A shielding ring connection on a Hunter flow meter works like a cable shield drain point. The ring sits between the cable gland and the flow meter housing or timer cabinet. You strip the outer jacket, fold the shield braid over the ring, and crimp it. The ring then makes contact with the metal conduit fitting or the timer ground terminal.
Connect the shield ring at the timer end only. Leave the flow meter end floating. If you connect the shield at both ends, you create a ground loop. Ground loops make the pulse signal noisy. This is the most common mistake on long irrigation cable runs.
Tighten the gland nut to 1.5 N m or 2 N m if the fitting is metal. Do not overtighten plastic housings. A cracked housing lets moisture enter and corrodes the screw terminals.
Water and corrosion are the main failure points on exterior irrigation timers. Use a silicone filled wire nut or a small junction box for the cable splice. Keep the splice above ground level. Seal the timer enclosure after wiring. In Southeast Asia and northern Australia, we see heavy rain and high humidity on outdoor irrigation sites. These conditions demand sealed connections.
Common Wiring Faults on Irrigation Timers
One fault is running the flow meter cable in the same conduit as the pump power cable. Even a 30 cm parallel run can couple noise into the low voltage signal. Keep at least 300 mm of separation between the flow meter cable and any AC power line. If the cable must cross a power line, make the crossing at a 90 degree angle.
Another fault is using the wrong input terminal. Hunter timers often have a dedicated flow sensor input marked FLOW or FS. Wire the red lead to that terminal. Wire the black lead to COMMON or C. If you wire the pulse signal to a 24 VAC solenoid termina
In a customer case in Vietnam, an irrigation station used a 55 kW pump motor. The Hunter flow meter cable ran parallel to the motor cable for about 8 m. Flow readings jumped from 0 L/min to 300 L/min when the pump started. We recommended separating the cables and bonding the shield at the timer end only. The false flow spikes disappeared.
When Hunter Flow Meter Wiring Is Not Enough
Hunter flow meters fit residential and light commercial irrigation. They work well on clean water lines and small pipe sizes. For larger irrigation networks, raw river water, fertilizer injection, or wastewater reuse, the pulse signal alone may not be enough. You may need a 4-20 mA HART signal, a local display, or a meter with a PTFE liner and 316L electrodes.
Silver Automation Instruments supplies electromagnetic flow meters and ultrasonic flow meters for industrial water lines. A magnetic flow meter from Silver Instruments handles DN50 to DN300 pipes. It sends a 4-20 mA HART signal to the irrigation controller or PLC. The signal is more stable than a pulse output in noisy pump stations.
We do not sell Hunter flow meters. We do solve similar low voltage signal shielding problems on industrial water and wastewater lines. If your irrigation site uses bore water, brackish water, or fertilizer dosing, we can recommend a meter that survives those conditions.
Silver Instruments Options for Irrigation and Water Lines

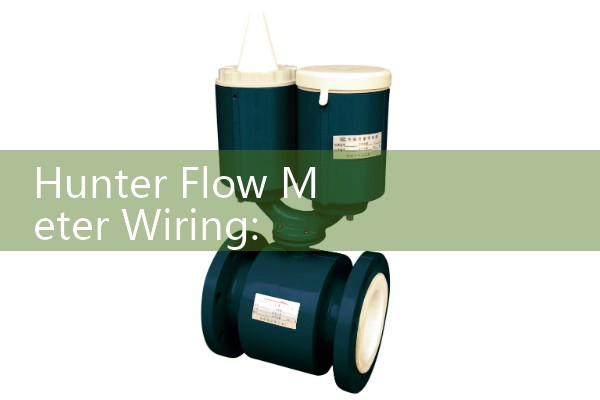

For a main irrigation line with a pump station, consider a Silver Instruments electromagnetic flow meter. Specify the pipe size, flow range, pressure, and temperature. For a 100 mm line with 20 m3/h to 100 m3/h flow, a DN100 electromagnetic flow meter with a PTFE liner and 316L electrodes is a common choice. The output can be pulse, 4-20 mA, or RS485 Modbus.
For insertion flow measurement on large pipes, an ultrasonic flow meter can be mounted from the outside. This avoids cutting the pipe and works on DN50 to DN3000 lines. The wiring for ultrasonic outputs follows the same shielded cable rules. Bond the shield at the controller end only.
Send us your pressure in bar, temperature in degrees Celsius, pipe size in DN, and flow range. Our sales engineers will reply with a model and a quote. You can reach Silver Automation Instruments by tel at +86-25-68650347, by Whatsapp at +86-25-52155837, or by WeChat at +86 15365082610.
FAQ on Hunter Flow Meter Wiring and Shield Ring Connections
Does the Hunter flow meter shield ring connect at the timer or at the flow meter? The shield ring connects at the timer ground terminal. Leave the flow meter end floating. This prevents ground loops and keeps the pulse signal clean.
What wire size should be used for Hunter flow meter wiring? Use 18 AWG or 20 AWG shielded twisted pair cable. For runs up to 30 m in a quiet area, two wire cable can work. For longer runs, use shielded cable.
Can the flow meter cable be run with pump power wires? No. Keep at least 300 mm of separation. If crossing is required, cross at 90 degrees. Do not run both cables in the same conduit.
What type of signal does a Hunter flow meter send to an exterior irrigation timer? It sends a low voltage pulse signal. The pulse frequency is proportional to flow. The timer converts the frequency to a flow rate.
When should a Hunter flow meter be replaced with an industrial flow meter? For pipe sizes above DN50, dirty water, high pressure lines, or if you need 4-20 mA HART output, an electromagnetic or ultrasonic flow meter from Silver Instruments is a better fit.
