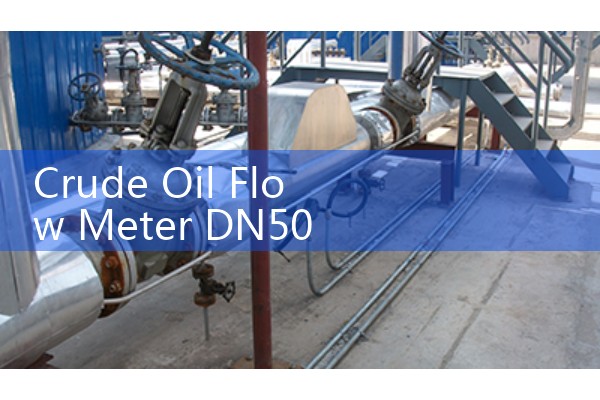

Crude Oil Flow Meter DN50 Test Separator Measurement Layouts
A DN50 Coriolis mass flow meter gives you net oil mass, density, and live water cut directly from the liquid leg of a 2 inch test separator.
Quick Answer: For well rates between 50 and 2000 barrels of oil per day, mount a DN50 Coriolis meter vertically after the gas knockout vessel. Use a 5D straight inlet run, a PT100 sensor in the downstream line, and a 4-20 mA HART pressure transmitter after the meter. This layout eliminates gas slug errors and delivers measurement uncertainty under 0.15 percent of rate for crude oils from 5 cP up to 300 cP.
Silver Automation Instruments supplies pre-configured DN50 Coriolis meters for test separator skid builders in Kuala Lumpur, Perth, Muscat, and Lagos. The meter body is rated for 40 bar at 120 degrees Celsius and comes with ATEX Zone 1 or IECEx ia IIC T6 approvals as standard. Send us your pipe schedule, oil API gravity, flowing pressure and temperature, and we will provide a dimensioned layout drawing this week.
Why a DN50 flow meter and not a 1 inch turbine meter. Test separator liquid lines in Southeast Asia, the Middle East and offshore West Africa almost always use 2 inch Schedule 80 pipe. A DN50 Coriolis sensor matches that bore exactly, so you avoid reducer-induced flow disturbance and pressure loss. Turbine meters clog on waxy crude. We have seen a service company in East Kalimantan replace turbine bearings every six weeks because of fine sand and paraffin. A Coriolis meter has no moving parts, no bearings, and no mechanical drift. That alone saves 14 days of downtime per year on brownfield pads.
Here is the thing about oil cut. A Coriolis meter in a test separator layout gives you live density and temperature from the same sensor. After you input the dry oil density and formation water density into the flow computer, the meter calculates net water cut without a separate capacitance probe. On a three-phase separator skid we sent to a customer in Basra last year, the Coriolis replaced a manual BS&W sampler and a turbine meter, cutting the well test cycle from 4 hours to 45 minutes. The oil there was 24 API with 12 percent basic sediment and water. Density differential was only 0.08 g per cubic centimeter, but the meter held 0.2 percent repeatability.
Layout rules you must follow. Install the DN50 Coriolis meter in a vertical upward flow orientation. This keeps the measuring tubes full of liquid even if small gas bubbles carry over from the separator. If you must install it horizontally, place the meter neck up and ensure a backpressure valve is at least 2 meters downstream. That prevents flashing when the crude goes through the valve. Put a Y-type strainer with 1 mm mesh 7D upstream of the meter. A field operator in Oman once bypassed this strainer on a heavy oil pilot, and a pebble the size of a finger nail wedged in the meter tube. It cost them a week of production data. A simple 200 dollar strainer saved the project the next time.
Straight run requirements. A DN50 Coriolis meter from Silver Instruments needs 5D straight pipe upstream and 2D downstream. That is 250 millimeters inlet and 100 millimeters outlet. Most engineers skip the outlet straight run, but if you mount a pressure transmitter immediately after the meter, a 2D spool piece avoids vibration and noise in the pressure signal. In practice, we deliver the pressure transmitter already mounted on the same skid frame with a 100 millimeter nipple. One less job for the pipe fitter.
Pressure and temperature compensation. Use a PT100 RTD thermowell inserted 3D downstream of the Coriolis meter for a verification reading. The meter itself has a built-in Pt1000 Class A sensor, but many government metrology inspectors in Latin America and Nigeria insist on a separate temperature well. We recommend the Silver SPM540 pressure transmitter with 4-20 mA HART output, installed in the liquid leg after the Coriolis, never before. This transmitter gives you gage pressure for net oil standard volume correction. Range it 0 to 40 bar gage, and set the damping to 2 seconds. Wire it on the same HART loop as the flow meter to save cable cores.
Hazardous area wiring we see every day. You need Ex ia IIC T6 Ga or Gb labeling for the entire separator pad. Our DN50 Coriolis meter comes with ATEX II 1G or 2G, IECEx ia, and EAC Ex certifications. For a skid in the Niger Delta last month, we supplied meters with dual compartment aluminum enclosures and M20 cable entrie
_600x400.jpg)
Commissioning on live crude is quick when you follow two steps. First, fill the meter with diesel or light distillate. Close the isolation valves and run a zero verification. If the density reading bounces more than 2 kg per cubic meter, a gas bubble is trapped. Crack the downstream valve to vent it. Second, switch to well effluent and let the meter stabilize for 15 minutes until the drive gain drops below 15 percent. A customer in Vietnam skipped the light oil fill and zeroed on live waxy crude. The meter fault light came on at 4 AM, and they lost a day chasing a blockage. Diesel first saves that headache.
Now the direct business part. When you email us for a DN50 crude oil flow meter quotation, include the well name, flowing tubing pressure in bar, wellhead temperature in degrees Celsius, API gravity, expected water cut range, gas oil ratio, and pipe diameter upstream of the separator. We reply with a complete measurement layout PDF and a price breakdown for the meter, pressure transmitter, RTD, and signal cable kit within 24 hours. Our lead time for a standard DN50 Coriolis is 6 weeks from our Shanghai calibration facility. For urgent skid builds, we have kept 8 units in ready stock since 2024.
Not every separator suits a Coriolis, and we will tell you honestly. If your crude viscosity stays above 300 cP at separator temperature and you cannot heat the line, a 2 inch oval gear flow meter is a better choice. A state oil company in Colombia runs a DN50 oval gear meter on unheated 12 API crude from a remote jungle well where diesel supply is unreliable. They accept 0.5 percent repeatability and a mechanical counter. Silver Instruments offers that alternative with PPS gears and graphite bearings. For most light and medium crudes under 50 cP, however, the Coriolis remains the reference.
Below are the five questions we answer most weeks from field engineers and skid procurement teams.
Q: Can I use a DN40 Coriolis instead of DN50 to save money?
A: A DN40 meter has a smaller flow range. It hits the maximum velocity limit close to 18 cubic meters per hour. A typical 2 inch test separator liquid leg pushes 25 cubic meters per hour peak after a gas slug. The DN40 will saturate and drive gain will spike. Stick with DN50 for 2 inch lines.
Q: Does the meter need NACE MR0175 for sour crude?
A: Yes if partial pressure of H2S exceeds 0.05 psi. Our standard wetted material is 316L stainless steel, which passes NACE MR0175 for moderate sour service. For high H2S fields in Saudi Arabia, specify Hastelloy C-22 sensor tubes and PTFE gaskets. We deliver compliance certificates with the material test reports.
Q: How often should I recalibrate the DN50 Coriolis on a test separator?
A: We recommend an annual verification with a master Coriolis on a mobile calibration rig. Many Middle Eastern NOCs demand a bench re-calibration every 24 months. The meter has almost zero drift. A service card from a five-year-old unit in Australia showed a 0.04 percent mass flow deviation after 3,200 well tests.
Q: What if my test separator has a two-phase liquid outlet without a gas knockout?
A: A Coriolis will measure gas as liquid and drive gain up. You must install a compact gas buster or a vortex tube upstream. Silver Instruments supplies a DN50 in-line gas eliminator that vents to the flare header. Without it, your oil meter might under-read mass flow by 8 to 15 percent during slug flow.
Q: What communication protocol do most customers request?
A: 4-20 mA HART plus Modbus RTU is the standard. It connects directly to Emerson ROC, ABB Totalflow, or any RTU. In Latin America, some skid makers also ask for a pulse output for a mechanical totalizer. We configure all outputs before shipment and test each circuit with a Fluke 754. No extra cost.
Ask us for a measurement layout stamped by our process engineer. Mention the separator manufacturer and the nozzle distance, and we will adapt the drawing for free. Email [email protected] with the subject line DN50 Test Separator Layout. We reply with a block diagram and instrument tag list the same business day.
