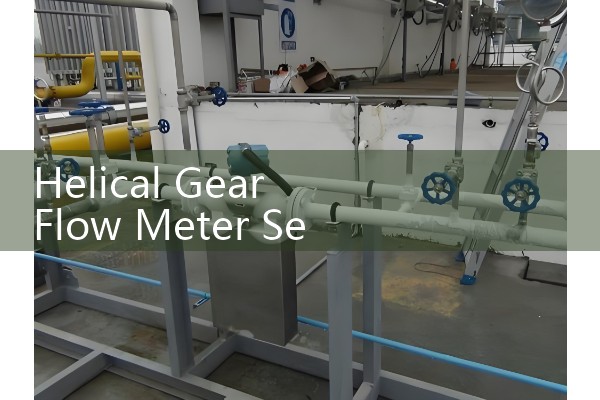

Helical Gear Flow Meter Selection: Pulse-Output High-Pressure Transmitters for Fluid Lubrication
Quick Answer
Helical gear flow meters fit clean lubricating fluids from 5 cP to 100,000 cP. For high-pressure lubrication lines up to 400 bar, choose a pulse-output model with a local or remote transmitter. Send your pressure, temperature, pipe size, and flow range to Silver Automation Instruments for a firm quote.
How to Select a Helical Gear Flow Meter for Lubrication Service
Start with the flow range. Here is the thing. Pipe size alone is not enough. A DN25 line can carry 0.5 L/min or 60 L/min depending on the pump and injection skid. Most engineers select the meter so normal flow sits between 20 and 80 percent of full scale. That keeps accuracy around plus or minus 0.2 to 0.5 percent of reading and reduces gear wear.
For lube oil circulation, helical gear meters in DN10, DN15, DN20, and DN25 cover most small to medium skids. Larger engine lubrication systems in marine diesel or gas engines often need DN40 or DN50. Specify the minimum and maximum flow in L/h or kg/h. In practice, many purchase orders only list pipe size and pressure. That is not enough to pick the correct meter.
Pressure Rating and High-Pressure Transmitter Options
Standard aluminum bodies handle 100 bar. Stainless steel bodies handle 400 bar. Some special versions go up to 630 bar. High-pressure transmitter selection depends on whether you need a compact unit mounted directly on the meter or a remote electronics box. Direct-mount transmitters work well for most oil skids. Remote transmitters suit high-temperature panels or areas with vibration.
Pulse output is common for totalizing and batching. Hall effect pickups deliver a square wave pulse. Reed switches work for slower flow rates and simpler PLC inputs. Many customers in Southeast Asia and the Middle East ask for both pulse and 4-20 mA HART. Silver Instruments supplies helical gear flow meters with dual output transmitters. The 4-20 mA HART signal goes to the control system. The pulse signal goes to a batch controller or fuel management panel.
Set the K-factor from the calibration certificate into the PLC. Do not use the default value. A small scaling error creates a large totalizer drift over two weeks.
Fluid Lubrication and Viscosity Limits
Helical gear flow meters work well with ISO VG 22, ISO VG 32, ISO VG 68, ISO VG 220, and heavier gear oils. Because the measuring chamber is positive displacement, the meter stays accurate when viscosity changes. A turbine meter drifts more in the same service. Below 5 cP, internal slip increases. Above 100,000 cP, pressure drop becomes a concern, especially on cold start.
Fluid lubrication matters for the meter gears and bearings. For standard models, the measured fluid lubricates the gears. That is why helical gear meters are not recommended for water without special ceramic bearings. For diesel, light fuel oil, hydraulic oil, and lube oil, standard PPS or aluminum gears work well. For aggressive
Installation Notes for High-Pressure Lubrication Lines
Install a strainer upstream. A 60 mesh stainless steel strainer is typical for lube oil. In practice, most engineers skip this part. We have seen on customer sites many times that metal chips from pumps or weld slag damage the gears within days. A small Y strainer costs less than a replacement meter.
Mount the meter so the chamber stays full of liquid. Avoid air pockets. If the line pressure is above 100 bar, check the process connection type. Threaded connections are common up to DN25. Flanged connections suit DN40 and larger. Do not use rubber hoses that expand and absorb the true flow. Rigid piping improves repeatability.
Common Applications
Lubrication oil skids in steel plants, hydraulic oil test benches in Vietnam, diesel injection test benches in Indonesia, and gear oil dosing in Malaysia. One customer in Vietnam ordered a DN25 stainless steel helical gear flow meter with 4-20 mA HART for a hydraulic oil test bench at 180 bar. The meter replaced a turbine meter that lost accuracy when the oil viscosity changed from ISO VG 32 to ISO VG 68.
Other applications include burner fuel feed lines, engine test cells, marine diesel lubrication, and additive injection for lubricant blending. In each case, the selection rule is the same: define flow range, pressure, temperature, viscosity, and output signal.
FAQ
What is the maximum pressure for a helical gear flow meter?
Stainless steel bodies can handle 400 bar. Special versions go up to 630 bar. Aluminum bodies are typically limited to 100 bar. Confirm the transmitter and process connections carry the same rating.
What output signals can I get?
Pulse output, 4-20 mA HART, and Modbus RTU. Dual output high-pressure transmitters are available for lube oil batching and continuous monitoring.
What viscosity range works best?
5 cP to 100,000 cP. For low viscosity below 5 cP, ask for tight clearance gears. For very high viscosity, verify pressure drop at cold start.
Can I use a helical gear flow meter in a hazardous area?
Yes. Select an intrinsically safe pulse pickup or an ATEX Zone 1 transmitter. Tell us the gas group and temperature class with your inquiry.
Which materials are available?
Aluminum, stainless steel 316, PPS, and PTFE. Wet parts depend on fluid compatibility. Send us the oil type and temperature range before you order.
Get a Specific Quote from Silver Automation Instruments
Send your pressure in bar, temperature in Celsius, pipe size in DN, and flow range in L/h or kg/h. Also include the output signal you need. Contact Silver Automation Instruments by Tel at +86-25-68650347, Whatsapp at +86-25-52155837, or WeChat at +86 15365082610. You can also visit flow-meter.com.au.
