Flow Meter Pneumatic Systems Sizing: Monitoring Compressed Air Output and Efficiency
Quick Answer: Compressed air flow meter sizing starts with operating pressure, temperature, pipe size, and normal flow range. For most plant air lines from DN25 to DN200, a thermal mass flow meter gives direct mass flow reading in Nm3/h without external pressure compensation. Send your pressure in bar, temperature in °C, pipe size DN, and flow range to Silver Automation Instruments for a fixed industrial quote.
Start With Compressed Air System Data
Most engineers skip this part and then order the wrong meter size. Flow meter pneumatic systems sizing is not a guess based on pipe diameter alone. You need four values. Operating pressure, temperature, pipe size, and normal flow range. A meter sized only by pipe diameter often ends up too large at low flow. That creates a weak signal and poor accuracy.
Compressed air is not free. We have seen this on customer sites many times. A 2 mm leak in a 7 bar system can waste several kW of compressor power. A thermal mass flow meter on the main header records total plant output. A second meter on a branch line shows which process uses the air. This setup helped a paint manufacturer in Vietnam split air cost between two production halls.
Pipe Size and Flow Range
For small lines from DN15 to DN50, an inline thermal mass flow meter or a small vortex flow meter works well. For DN65 to DN200, an insertion thermal mass flow meter costs less and installs with a hot tap fitting. Above DN200, insertion probes are the practical choice. The probe insertion depth must match the pipe inside diameter and wall thickness.
Check velocity before you order. A thermal mass flow meter needs a measured gas velocity inside its sensor range. For a DN100 pipe at 7 bar, a plant moving 400 to 2500 Nm3/h fits a typical insertion meter. If the minimum flow is below that, ask for a smaller line size or a meter with a higher turndown.
Meter Types for Compressed Air
Thermal mass flow meters suit dry compressed air systems. They give direct mass flow in Nm3/h and do not need external pressure and temperature compensation. Pressure drop stays very low. This matters in compressed air because every bar lost to the meter costs compressor power.
Vortex flow meters can handle wet air, oil mist, and higher temperatures. A vortex meter gives volumetric flow. You need a pressure transmitter and a temperature sensor to convert that to normal flow. Some engineers prefer this setup when they already have pressure and temperature sensors on the line.
Output and Integration
Request 4-20 mA HART and Modbus RTU RS485 on the meter. Ask for a pulse output for totalizing. Add a pressure transmitter on the same header. A paperless recorder can log flow, pressure, and temp

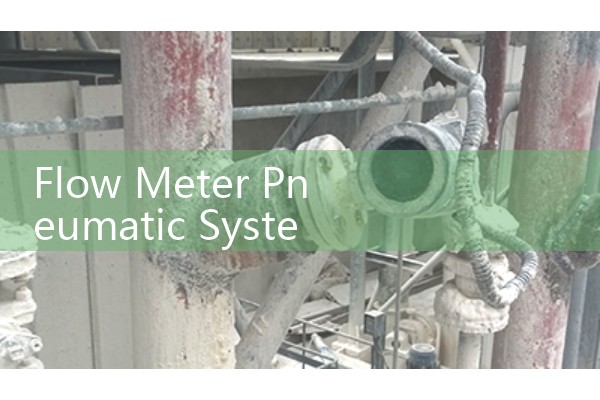

_600x400.jpg)
If the compressor room is classified, state the zone. ATEX Zone 1 or Zone 2 approval changes the meter housing and probe design. Do not forget the local display if operators need to see flow without a control system.
Sizing Example From a Customer Site
Last year a customer in Vietnam asked us for a compressed air flow meter on a DN80 ring main. Operating pressure 7.2 bar. Temperature 28 °C. Flow range 300 to 2800 Nm3/h. We recommended an insertion thermal mass flow meter with a 150 mm probe, 4-20 mA HART output, and a local display. Installation took less than 2 hours with a hot tap fitting. Since then the plant has used the meter data to find a 15 percent drop in compressor runtime after fixing leaks.
Install Location and Accuracy
Install the meter at least 15 diameters downstream from bends, valves, or T-pieces. For a DN80 pipe that is 1200 mm of straight run. If you do not have that space, tell us the available straight run. A flow conditioner can help, but it adds pressure drop. Insertion probes need the correct insertion depth. The depth is calculated from the pipe inside diameter and wall thickness.
FAQ
Which flow meter is best for compressed air? A thermal mass flow meter is the first choice for dry compressed air because it reads mass flow directly and has low pressure drop. Use a vortex flow meter for wet air or high temperature applications.
Do I need pressure and temperature compensation? Thermal mass flow meters do not need external compensation for mass flow. Vortex meters measure volumetric flow, so you need a pressure transmitter and a temperature sensor to get normal flow or mass flow.
What signal should I specify? Specify 4-20 mA HART plus Modbus RTU RS485. Ask for a totalizer function. Plant data systems connect easily with these outputs.
Can I install the meter in an existing pipe without shutdown? Yes. Many insertion thermal mass flow meters allow hot tap installation under pressure. Confirm the connection size and pressure rating before ordering.
How do I size a flow meter for a ring main? Send the pipe diameter DN, operating pressure bar, temperature °C, minimum and maximum flow Nm3/h. Silver Automation Instruments will check velocity, pressure drop, and turndown and return a model number with a fixed quote.
We supply compressed air flow meters to plants in Australia, Vietnam, Thailand, Chile, and Saudi Arabia. Send your compressed air pressure in bar, temperature in °C, pipe size DN, and flow range in Nm3/h to Silver Automation Instruments. Tel +86-25-68650347. WhatsApp +86-25-52155837. WeChat +86 15365082610. You can also review products at flow-meter.com.au.
