Best RV Water Flow Meter: Sourcing Inline Campground Hose Volumetric Sensors
Quick Answer: For most campground hose metering jobs, an inline volumetric sensor with a DN15 or DN20 body, pulse output, and a 3/4 inch GHT or NPT connection keeps total cost low and plumbing simple. Silver Automation Instruments supplies these meters in compact polymer or 316 stainless steel bodies. Send us your pipe size, flow range in liters per minute, and thread type for a firm quote.
Why RV Water Flow Data Matters for Sourcing Teams
Campground operators, caravan park builders, and water monitoring OEMs need flow meters that survive outdoor use. A standard mechanical water meter can jam when sand or scale runs through a bore water line. An inline electromagnetic sensor has no moving parts and handles a wider water quality range. If you buy for multiple sites across Southeast Asia or Oceania, the first thing to lock down is not the meter body but the thread standard.
We have seen a campground operator in Queensland order 40 meters with NPT threads and then discover that local hose fittings were GHT. The whole batch sat in a shed for two months. So before you compare prices, confirm whether the park uses garden hose threads or pipe threads.
Inline Volumetric Sensor Types That Fit a Campground Hose

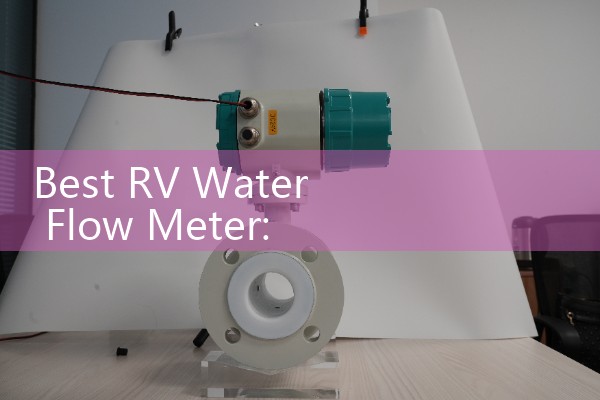

Silver Instruments recommends two sensor types for RV water metering. A DN15 electromagnetic flow meter is the first choice for bore water or chlorinated water. It measures from 0.5 to 25 L/min with a typical accuracy of plus or minus 0.5 percent of reading. The liner is PTFE or PFA, and the electrodes are 316L stainless steel or Hastelloy C for aggressive water.
An oval gear flow meter is a lower cost option for clean potable water lines. It works well from 0.2 to 15 L/min on a DN8 or DN15 body. Avoid oval gear meters if the water carries fine sand. The gears wear quickly and the reading drifts. Because most RV parks do not filter incoming water, the electromagnetic sensor is often safer for annual service intervals.
Common Installation Mistakes on Campground Water Lines
Here is the thing. Straight pipe requirements on small meters matter less than air and debris. Most engineers skip this part. An electromagnetic flow sensor needs less straight run than a turbine meter, usually 5 DN upstream and 2 DN downstream. That means 75 mm of straight pipe before a DN15 sensor. In practice, this is easy inside a hose reel cabinet.
Air pockets cause more trouble than low flow. If the meter sits on a slope after a hose quick connect, trapped air can cause the reading to jump by 10 percent or more. We have seen this on a Malaysian campground where the meter was installed directly after a ball valve with an air vent upstream. The fix was to move the sensor 200
Pricing and Lead Time Factors
Do not compare list prices alone for small inline meters. The fitting cost often exceeds the meter cost. A DN15 polypropylene electromagnetic sensor may cost around USD 180 to USD 260 ex works for a standard 4-20 mA unit. Stainless steel body versions start higher, usually USD 300 to USD 450 depending on output type and cable length. If your project needs ATEX Zone 1 rating, the price changes. Not all small water meters are certified for hazardous areas. Tell us if the meter sits near a generator shed or gas bottle storage.
For a batch of 50 units to Southeast Asia, sea freight is more economical than air freight. Shipments to Port Klang or Laem Chabang take about 6 to 9 days after dispatch from Nanjing. Australia and New Zealand orders often go by air because the parcel weight is low and customers want fast resupply for summer season upgrades.
Silver Instruments Supply Scope for RV Water Meters
We are a flow meter manufacturer based in China, not a retail RV parts shop. The benefit is that we can supply the same DN15 sensor to a distributor in Perth, a resort operator in Bali, or an OEM in Guadalajara. We ship in bulk cartons with calibration sheets and a short installation note. We do not put retail packaging around the meter.
Contact Silver Automation Instruments for a quote. Tel: +86-25-68650347, Whatsapp: +86-25-52155837, WeChat: +86 15365082610. Send us your requested flow range in L/min, pipe size in DN, thread type, and required analog or pulse output.
Frequently Asked Questions
What flow range should I specify for a single RV hookup?
Most single RV sites draw 4 to 12 L/min. Specify a sensor that measures 0.5 to 25 L/min for good turndown. If you also feed a rinse station, choose 0.5 to 50 L/min.
Can I use a garden hose thread on an inline flow meter?
Yes. We can supply DN15 or DN20 meters with 3/4 inch GHT male or female ends. NPT threads are also available for hard pipe installations.
Do these meters need an external power supply?
It depends on the output. A pulse output version can run with a battery powered totalizer. A 4-20 mA electromagnetic flow meter needs a 24 V DC loop supply.
What is the typical delivery time for 20 pieces?
For standard DN15 or DN20 water meters, we can dispatch in 5 to 7 working days. Stainless steel versions may need 10 to 14 days if they are not in stock.
Can Silver Instruments provide a sample first?
Yes. We offer one paid sample with documentation. The sample cost is deducted on your first bulk order above 50 units. Provide your courier account or pay by bank transfer.
