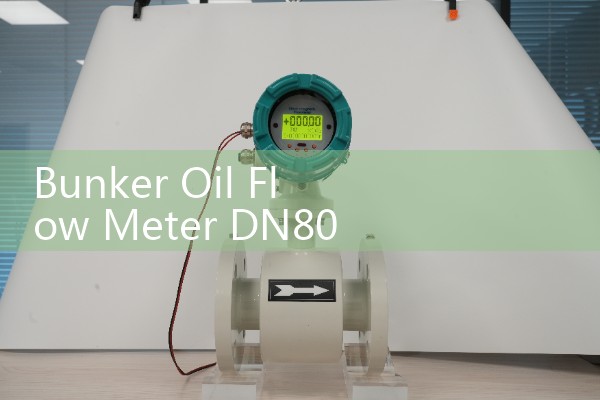

Bunker Oil Flow Meter DN80: Eliminating Air Pockets and Viscosity Errors
Quick Answer
For bunker fuel oil service, the two biggest measurement problems are entrapped air and temperature driven viscosity shifts. A DN80 flow meter with a properly sized air eliminator and active temperature compensation will reliably output mass or corrected volume. Silver Automation Instruments offers positive displacement and Coriolis meters pre-engineered for heavy fuel oil lines.
The Real Problem on Bunker Oil Transfer Lines
We have seen this on customer sites many times. After each pump start, the DN80 pipe carries a slug of air that was pulled into the suction line or outgassed from heated fuel. A standard turbine or electromagnetic meter reads this gas as liquid and over-reports volume. In one case, a fuel supplier in Vietnam using a competitor meter recorded 3 percent higher delivery volume than expected. The discrepancy vanished once they installed a meter with an integrated air eliminator.
Air pockets are not the only issue. Bunker oil viscosity ranges from 10 cSt to over 700 cSt depending on fuel grade and temperature. A change of just 10 degrees Celsius can double or halve the viscosity. Meters that assume a fixed K-factor drift fast.
Why DN80 Is a Critical Size for Bunker Oil
DN80 (3 inch) pipe handles typical flow rates of 15 m³/h to 80 m³/h for heavy oil transfers. At this size, a small percentage of gas by volume creates a large absolute error in liters. Many mid-size barges and terminal pipes use DN80 connection flanges. Silver Instruments stocks oval gear meters and Coriolis meters in DN80 EN 1092-1 PN16 and ANSI 150 flanges for fast delivery.
How Silver Instruments Eliminates Air and Viscosity Errors
Here is the thing. You need two parts working together. An upstream air eliminator mechanically separates free gas from the liquid before the meter. Then the flow meter itself handles the heavy oil. We pair our ST-type air separators directly with OGF series oval gear meters or CMF series Coriolis mass flow meters.
Oval gear meters measure volume directly. When you add a PT100 temperature sensor and a 4-20 mA HART transmitter, the meter applies live viscosity correction based on ASTM D341 tables. This keeps the volume output correct even if fuel temperature changes from 50 °C to 90 °C during a transfer. The OGF DN80 handles viscosities from 1 cP up to 2000 cP, covering IFO 180, IFO 380, and marine diesel.
For custody transfer or when you need mass flow directly, the Coriolis meter is the stronger choice. Our CMF DN80 measures mass flow, density, and temperature in one device with accuracy of ±0.1 percent of rate. It ignores air pockets in the reading once the drive gain detects two-phase flow. Combined with a strainer and air release valve upstream, you get a bunker metering skid that meets OIML R117 requirements.
A Practical Example from Southeast Asia
Last year a bunker trader in
Quick Selection Guide for DN80 Bunker Oil Meters
If your accuracy target is 0.5 percent of reading and you need a cost effective solution, choose the OGF oval gear meter plus air eliminator. Send us your fuel type, viscosity at operating temperature, pipe schedule, and required certificates. We will propose a complete assembly.
If you need 0.1 percent mass flow accuracy, direct density reading, or the ability to meter multiple fuel grades without recalibration, the CMF Coriolis meter is the right pick. We size the meter based on your maximum flow rate (kg/h) and pressure drop limit.
Frequently Asked Questions
Q: What causes air pockets in bunker oil DN80 lines?
A: Air enters when the tank level is low, through pump gland leakage, or from gas dissolved in heated fuel that evolves at low pressure. Even 1 percent gas by volume can cause a 2 percent volume error in a turbine meter. A mechanical air eliminator upstream removes bubbles larger than 0.5 mm.
Q: Do I need a strainer for heavy fuel oil metering?
A: Yes, always. We recommend a 40 mesh Y-strainer or duplex basket strainer before the air eliminator and meter. Asphaltene and coke particles stick to oval gear rotors and damage bearings. The strainer protects your investment.
Q: Can I use an electromagnetic flow meter for bunker oil?
A: No. Electromagnetic flow meters require a conductive liquid. Petroleum fuels are insulators. Stick with oval gear, Coriolis, or turbine with air separation. Silver Instruments can help you avoid this expensive mistake.
Q: What output signals do your DN80 bunker flow meters provide?
A: Standard outputs are pulse for batching, 4-20 mA HART for process monitoring, and RS485 Modbus RTU. We can also add wireless LoRa or NB-IoT transmitters for remote tank level and flow data logging.
Q: How do I get a price and lead time for a DN80 bunker oil meter?
A: Tell us your operating parameters: fuel type, viscosity (cSt) at reference temperature, flow range (m³/h), pipe flange standard (EN or ANSI), and hazardous area classification. Email these details to our team or use the quick inquiry form. We reply with a proforma invoice within 24 hours.
Need a DN80 bunker oil flow meter that handles real-world fuel conditions? Silver Automation Instruments supplies oval gear and Coriolis meters with air eliminators across Southeast Asia, the Middle East, and Latin America. Send us your pressure (bar), temperature (°C), pipe size (DN), and flow range for a custom proposal.
